Modular scaffolding system
Cuplock System
A modular steel scaffolding system identified by circular node points that allow horizontal ledgers to connect with vertical standards. It is used for suitable access, staging and support arrangements in construction and industrial work.
AvailabilityRental & Purchase
Service areaSurat & South Gujarat
Share the required sizes, quantity, rental period or purchase requirement, delivery date and exact project location.
Product overview
Efficient modular connections for planned site arrangements.
Cuplock standards have captive cup connection points at regular intervals. Ledgers are positioned at the required node and secured through the cup mechanism, reducing dependence on separate nuts, bolts and loose clamps for the system connections.
The system can be configured for suitable construction access, industrial maintenance and support work. Every layout, load, bracing arrangement, foundation and erection sequence must be checked against the project design and the actual supplied components.
Key features
Modular bay planning
Multiple standard and ledger lengths support planned scaffold grids and working levels.
Fewer loose components
Captive top cups help reduce small connection parts that can be misplaced during handling.
Reusable steel components
Components are intended for repeated site use when inspected, handled and maintained correctly.
Available sizes
Technical specifications
Sizes below are taken from the supplied Surat Scaffolding product document. Current stock, finish and exact dimensions must be confirmed with the quotation.
Vertical Standards
| Designation | Total length |
|---|---|
| Standard 0.5 m | 0.5 m |
| Standard 1.0 m | 1.0 m |
| Standard 1.5 m | 1.5 m |
| Standard 2.0 m | 2.0 m |
| Standard 2.5 m | 2.5 m |
| Standard 3.0 m | 3.0 m |
Horizontal Ledgers
| Designation | Nominal length |
|---|---|
| Ledger 0.6 m | 0.6 m |
| Ledger 0.9 m | 0.9 m |
| Ledger 1.2 m | 1.2 m |
| Ledger 1.25 m | 1.25 m |
| Ledger 1.5 m | 1.5 m |
| Ledger 1.8 m | 1.8 m |
| Ledger 2.5 m | 2.5 m |
Adjustable Jacks & Connections
- Base jack lengths
- 450 mm, 600 mm or 750 mm
- U-head jack lengths
- 450 mm, 600 mm or 750 mm
- Standard node interval
- 500 mm
- Vertical connection
- Joint pin / spigot
System components
What makes up a Cuplock arrangement?
The required combination depends on the approved scaffold or support design.
Vertical Standards
Upright members with cup nodes used to create the system height.
Horizontal Ledgers
Horizontal members connecting standards to form the planned bay.
Base Jacks
Threaded base components for an approved levelling arrangement.
U-Head Jacks
Adjustable top support for compatible beam arrangements.
Joint Pins
Internal inserts joining compatible vertical standards end-to-end.
Applications
Common usage areas

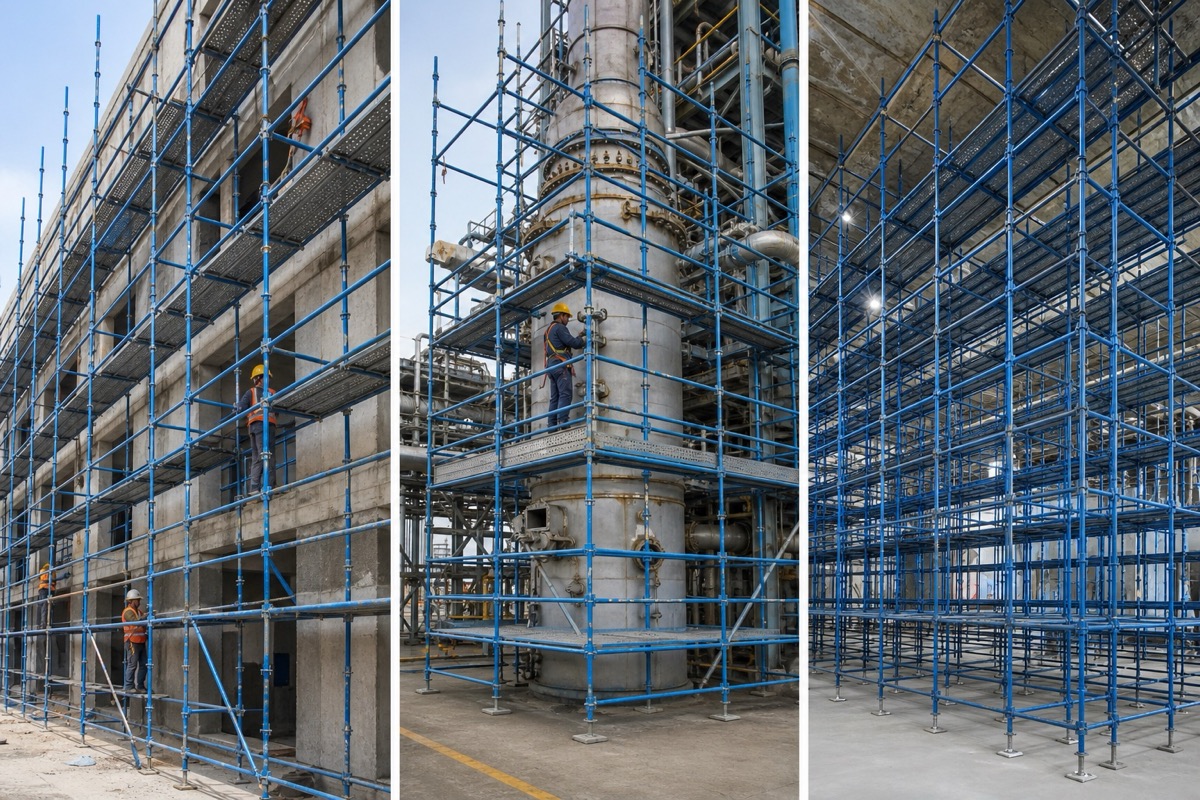

Commercial construction accessIndustrial maintenanceInfrastructure workSlab-support arrangementsTemporary working platformsPlant and pipeline access
Application examples are general guidance only. Engineering, loading, foundation, bracing, erection and inspection must follow the approved project design and competent site supervision.
